Purpose(Empty Backbone) Piggybac transposon sgRNA cloning backbone with MS2 loops at tetraloop and stemloop 2. Contains BbsI sites for insertion of spacer sequences.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 102560 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepiggybac
- Backbone size (bp) 3721
-
Vector typeMammalian Expression, CRISPR ; piggybac transposon
- Promoter U6
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer tttcttctataaagtaac
- 3′ sequencing primer gcattacacgtcttgagc (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byU6-MS2 cassette is from Feng Zhang's lab (Addgene #61424).
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
PB-sgRNA(MS2) was a gift from Ying Liu (Addgene plasmid # 102560 ; http://n2t.net/addgene:102560 ; RRID:Addgene_102560) -
For your References section:
One-Step piggyBac Transposon-Based CRISPR/Cas9 Activation of Multiple Genes. Li S, Zhang A, Xue H, Li D, Liu Y. Mol Ther Nucleic Acids. 2017 Sep 15;8:64-76. doi: 10.1016/j.omtn.2017.06.007. Epub 2017 Jun 15. 10.1016/j.omtn.2017.06.007 PubMed 28918057

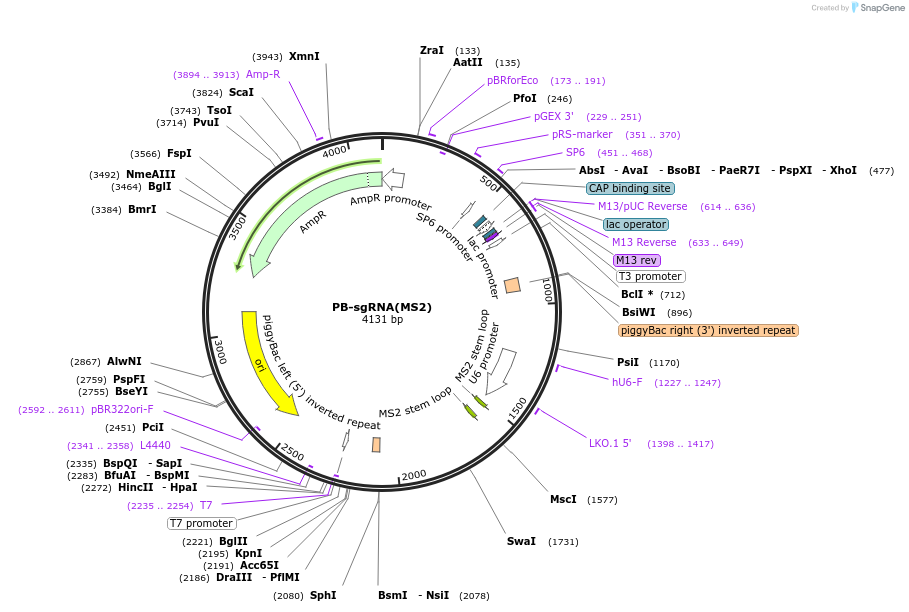

Map uploaded by the depositor.
