pSG73-β1ARts-sfGFP
(Plasmid #102459)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 102459 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

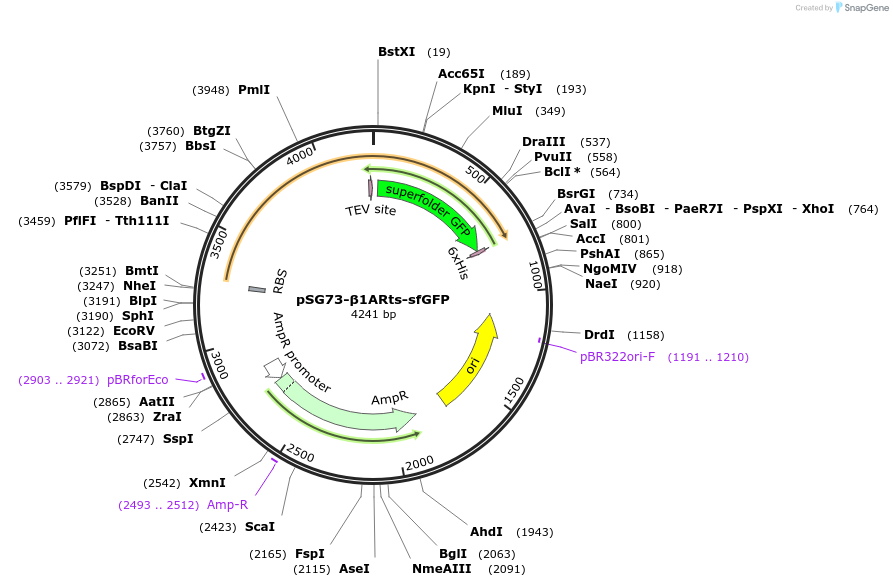

Backbone

  • Vector backbone
    pBEST
  • Backbone size w/o insert (bp) 2528
  • Total vector size (bp) 4241
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    KL740
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    β1AR
  • Alt name
    β1 adrenergic receptor
  • Alt name
    Thermostabilized turkey β1 adrenergic receptor
  • Alt name
    3ZPR
  • Species
    Meleagris gallopavo
  • Insert Size (bp)
    927
  • Promoter OR2-OR1-Pr
  • Tags / Fusion Proteins
    • sfGFP (C terminal on insert)
    • His tag (C terminal on insert)

Cloning Information

  • Cloning method Unknown
  • 5′ sequencing primer AAAACCGAATTTTGCTGGGTG
  • 3′ sequencing primer ATGATAAAGAACACAGTCATAAGTGC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://www.biorxiv.org/content/early/2017/01/30/104455 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSG73-β1ARts-sfGFP was a gift from Richard Murray (Addgene plasmid # 102459 ; http://n2t.net/addgene:102459 ; RRID:Addgene_102459)

  • For your References section:

    Expressing Biologically Active Membrane Proteins in a Cell-Free Transcription-Translation Platform. Guo S, Vaish A, Chen Q, Murray RM. bioRxiv 104455 10.1101/104455
