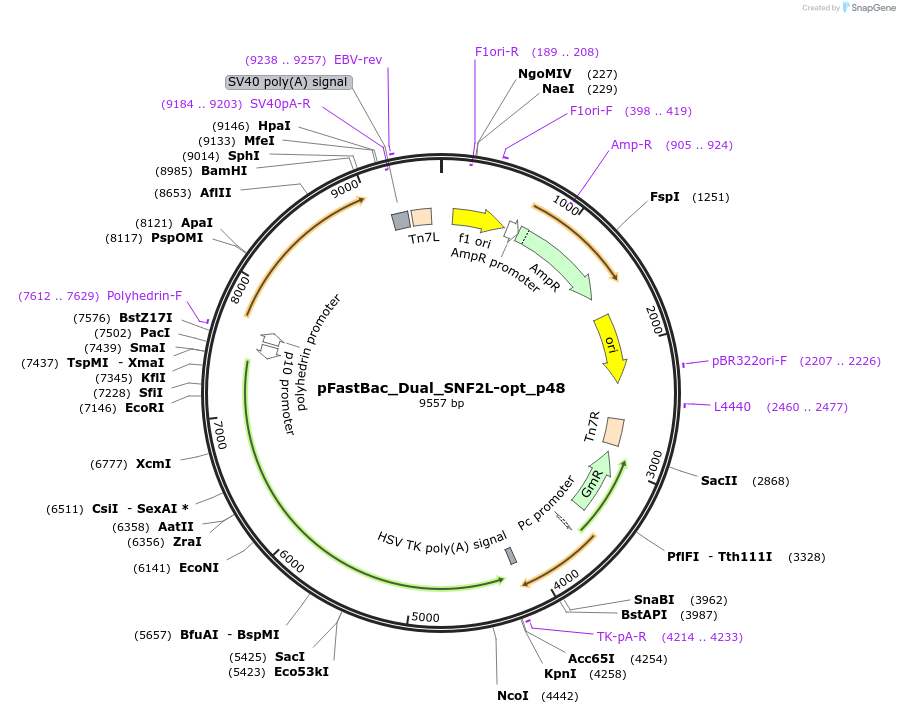

pFastBac_Dual_SNF2L-opt_p48
(Plasmid #102243)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 102243 Standard format: Plasmid sent in bacteria as agar stab 1 $85 *

* Log in to view industry pricing.

Backbone

  • Vector backbone
    pFastBac Dual
  • Backbone manufacturer
    Invitrogen
  • Total vector size (bp) 9605
  • Vector type
    Insect Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    SNF2L
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    3177
  • Mutation
    codon optimized for expression
  • Entrez Gene
    SMARCA1 (a.k.a. ISWI, NURF140, SNF2L, SNF2L1, SNF2LB, SNF2LT, SWI, SWI2, hSNF2L)
  • Promoter p10

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site Sma1 (not destroyed)
  • 3′ cloning site Kpn1 (not destroyed)
  • 5′ sequencing primer None
  • 3′ sequencing primer TK-pA-R
  • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    pRbAp48
  • Alt name
    RBBP4
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1278
  • GenBank ID
    NM_005610.2
  • Entrez Gene
    RBBP4 (a.k.a. NURF55, RBAP48, lin-53)
  • Promoter Polyhedrin

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site Hpa1 (destroyed during cloning)
  • 3′ cloning site Sph1 (not destroyed)
  • 5′ sequencing primer Polyhedrin-F
  • 3′ sequencing primer SV40pA-R
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pFastBac_Dual_SNF2L-opt_p48 was a gift from Joe Landry (Addgene plasmid # 102243 ; http://n2t.net/addgene:102243 ; RRID:Addgene_102243)
