P0050::kaiBC S431A T432A NS1
(Plasmid
#101837)
-
Purposedrives expression of kaiBC S431A T432A variant from an rpaA-independent promoter in NS1 locus
-
Depositing Lab
-

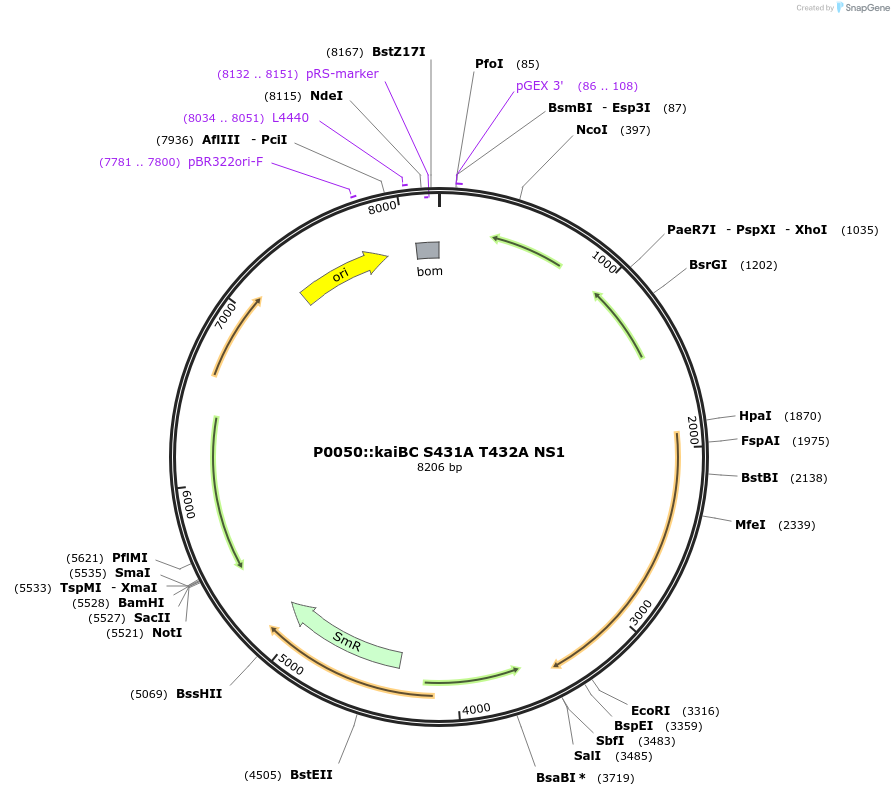

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 101837 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepAM1303
- Backbone size w/o insert (bp) 5700
- Total vector size (bp) 8100
-
Vector typeCyanobacteria cloning vector
Growth in Bacteria
-
Bacterial Resistance(s)Spectinomycin and Streptomycin, 50 & 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namekaiBC S431A T432A with p0050 promoter
-
SpeciesS. elongatus PCC7942
-
Insert Size (bp)2400
-
MutationS431A T432A
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer -
- 3′ sequencing primer - (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
P0050::kaiBC S431A T432A NS1 was a gift from Erin O'Shea (Addgene plasmid # 101837 ; http://n2t.net/addgene:101837 ; RRID:Addgene_101837) -
For your References section:
Switching of metabolic programs in response to light availability is an essential function of the cyanobacterial circadian output pathway. Puszynska AM, O'Shea EK. Elife. 2017 Apr 21;6. pii: e23210. doi: 10.7554/eLife.23210. 10.7554/eLife.23210 PubMed 28430105
