aCat TL2 (1-697 mTFP1-TSmod-Venus STOP)
(Plasmid
#101298)
-
PurposeFRET-based tension sensor (TS) technology to develop a probe for molecular-level tension across alphaE-catenin.
-
Depositing Lab
-

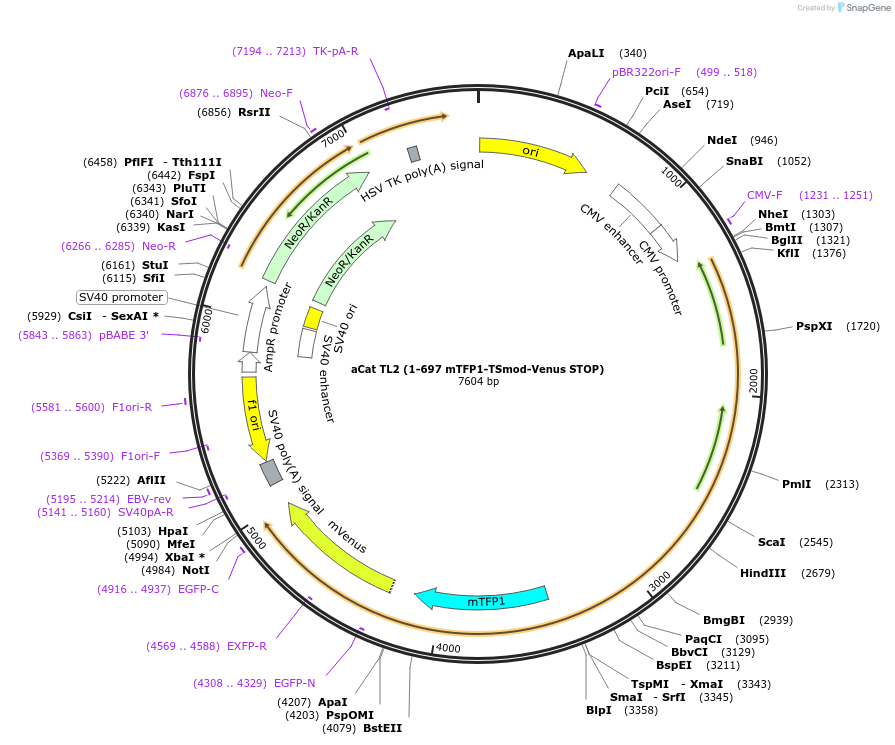

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 101298 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepEGFP-C1
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namealpha-Catenin
-
SpeciesM. musculus (mouse)
-
MutationContains amino acids 1-698 of alpha-Catenin
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer Unknown (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
The TS module with mTFP1-F40-venusA206K was adapted from Vinculin TS (a kind gift from Martin Schwartz [Grashoff et al., 2010]). The TSmod was cloned in to pEGFP-N1 vector at Xho1 and Not1 restriction sites. For aE-Cat-TS, the mouse N-terminal (1_697 aa) of alpha-catenin was inserted before mTFP1 by in- fusion cloning (Takara Bioscience, Clontech) at the Xho1 restriction site
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
aCat TL2 (1-697 mTFP1-TSmod-Venus STOP) was a gift from Alpha Yap (Addgene plasmid # 101298 ; http://n2t.net/addgene:101298 ; RRID:Addgene_101298) -
For your References section:
Mammalian Diaphanous 1 Mediates a Pathway for E-cadherin to Stabilize Epithelial Barriers through Junctional Contractility. Acharya BR, Wu SK, Lieu ZZ, Parton RG, Grill SW, Bershadsky AD, Gomez GA, Yap AS. Cell Rep. 2017 Mar 21;18(12):2854-2867. doi: 10.1016/j.celrep.2017.02.078. 10.1016/j.celrep.2017.02.078 PubMed 28329679
