4PY6
(Plasmid
#101272)
-
PurposeBacterial expression for structure determination; may not be full ORF
-
Depositing Lab
-
Publication
-

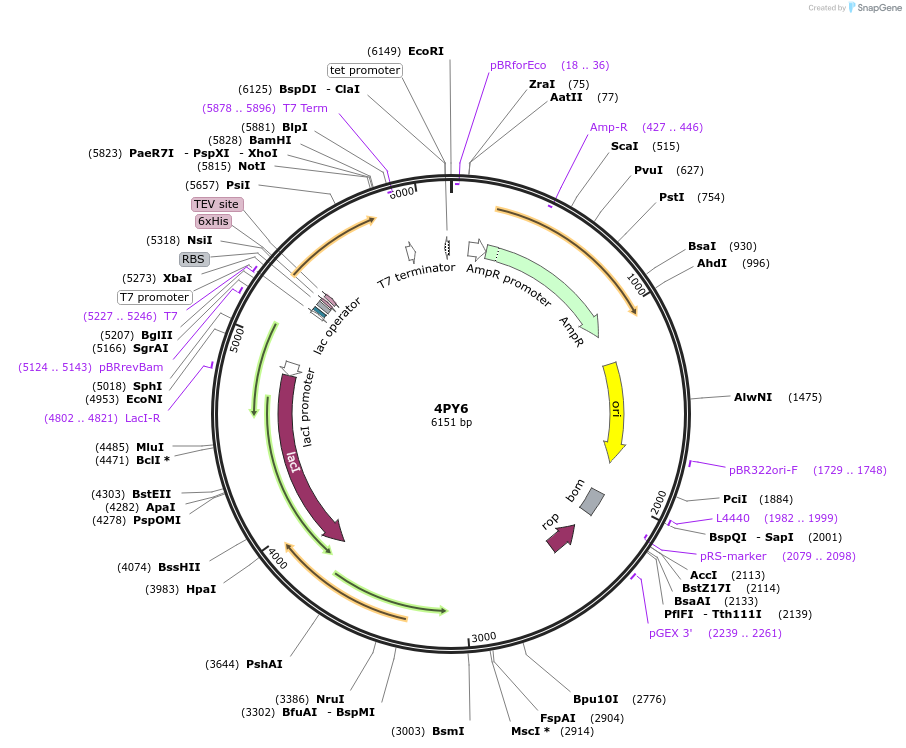

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 101272 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 * | |
* Log in to view industry pricing.
Backbone
-
Vector backbonepET15-MHL
-
Backbone manufacturerSGC (Addgene Plasmid #26092)
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert name4PY6
-
Insert Size (bp)432
- Promoter T7
-
Tag
/ Fusion Protein
- 6xHis-TEV (N terminal on backbone)
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer T7
- 3′ sequencing primer T7-term (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
N terminal tag: MHHHHHHSSGRENLYFQG. SGC Clone Sample ID: PFA0510w:MAC02W-B09:C201930. SGC or PDB link: http://www.rcsb.org/pdb/explore/explore.do?structureId=4PY6
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
4PY6 was a gift from Cheryl Arrowsmith (Addgene plasmid # 101272 ; http://n2t.net/addgene:101272 ; RRID:Addgene_101272)
