PurposeAAV vector expressing CaMPARI2_F391W-G395D (Kd = 530nM), a photoconvertible fluorescent protein-based calcium integrator, in neurons
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 101063 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-

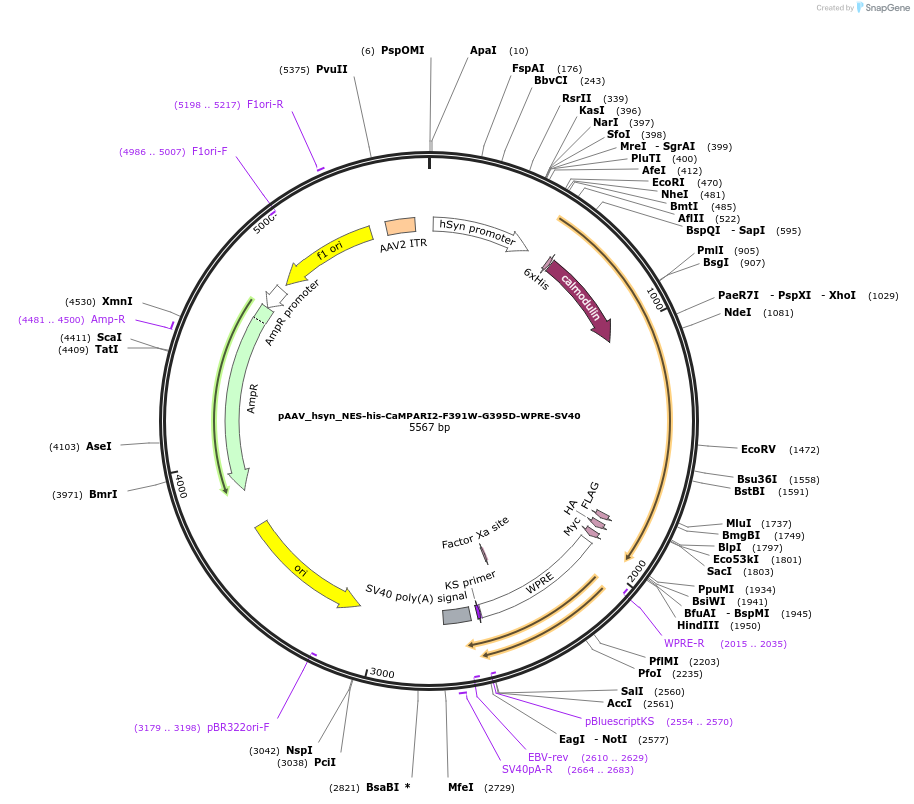

Vector backbonepAAV
- Backbone size w/o insert (bp) 4267
- Total vector size (bp) 5716
-
Vector typeAAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCaMPARI2_F391W-G395D
-
SpeciesSynthetic
-
Insert Size (bp)1446
- Promoter hsyn (synapsin-1)
-
Tags
/ Fusion Proteins
- NES_his (N terminal on insert)
- FLAG-HA-myc (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer f.hsyn
- 3′ sequencing primer r.WPRE (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Point mutant (F391W-G395D) of CaMPARI2 (Addgene #101060). Kd = 530nM
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAAV_hsyn_NES-his-CaMPARI2-F391W-G395D-WPRE-SV40 was a gift from Eric Schreiter (Addgene plasmid # 101063 ; http://n2t.net/addgene:101063 ; RRID:Addgene_101063) -
For your References section:
Improved methods for marking active neuron populations. Moeyaert B, Holt G, Madangopal R, Perez-Alvarez A, Fearey BC, Trojanowski NF, Ledderose J, Zolnik TA, Das A, Patel D, Brown TA, Sachdev RNS, Eickholt BJ, Larkum ME, Turrigiano GG, Dana H, Gee CE, Oertner TG, Hope BT, Schreiter ER. Nat Commun. 2018 Oct 25;9(1):4440. doi: 10.1038/s41467-018-06935-2. 10.1038/s41467-018-06935-2 PubMed 30361563
