AcrIIA2
(Plasmid
#101042)
-
PurposeAnti-CRISPRprotein which inhibit SpyCas9 and LmoCas9 activity.
-
Depositing Lab
-

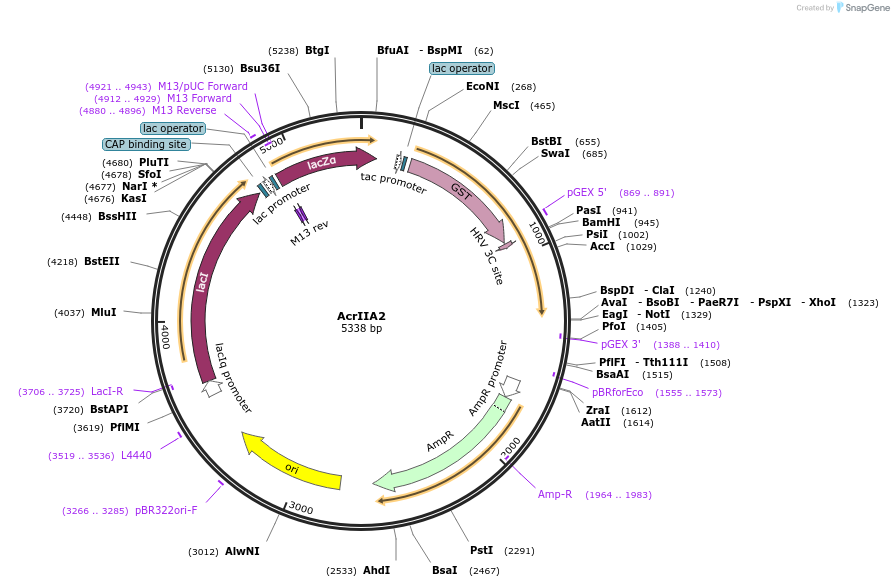

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 101042 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepGEX-6P-1
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameAcrIIA2
-
SpeciesSynthetic
-
Tag
/ Fusion Protein
- GST (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamH1 (not destroyed)
- 3′ cloning site Xho1 (not destroyed)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
AcrIIA2 was a gift from Zhiwei Huang (Addgene plasmid # 101042 ; http://n2t.net/addgene:101042 ; RRID:Addgene_101042) -
For your References section:
Structural basis of CRISPR-SpyCas9 inhibition by an anti-CRISPR protein. Dong D, Guo M, Wang S, Zhu Y, Wang S, Xiong Z, Yang J, Xu Z, Huang Z. Nature. 2017 Jun 15;546(7658):436-439. doi: 10.1038/nature22377. Epub 2017 Apr 27. 10.1038/nature22377 PubMed 28448066
