LLP340 pEF1a-NLS-scFvGCN4-DNMT3a (mutant)
(Plasmid
#100944)
-
PurposeSingle chain variable fragment antibody GCN4 fused to DNMT3a catalytic mutant, binds SunTag, with 3xTy1 tag
-
Depositing Lab
-
Sequence Information
-
Sequences (1) — Accept Affinity Reagent Sequence Policy
-
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 100944 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backboneLLP252 pEF1a-NLS-scFvGCN4-DNMT3a
- Backbone size w/o insert (bp) 4321
- Total vector size (bp) 7190
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namescFvGCN4, sfGFP, GB1, DNMT3a catalytic mutant
-
SpeciesH. sapiens (human), Synthetic
-
Insert Size (bp)5157
-
MutationF636A, E660A, E725A, R295A
-
Entrez GeneDNMT3A (a.k.a. DNMT3A2, HESJAS, M.HsaIIIA, TBRS)
-
Tag
/ Fusion Protein
- 3xTy1 (C terminal on insert)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
LLP340 pEF1a-NLS-scFvGCN4-DNMT3a (mutant) was a gift from Ryan Lister (Addgene plasmid # 100944 ; http://n2t.net/addgene:100944 ; RRID:Addgene_100944) -
For your References section:
A modular dCas9-SunTag DNMT3A epigenome editing system overcomes pervasive off-target activity of direct fusion dCas9-DNMT3A constructs. Pflueger C, Tan D, Swain T, Nguyen TV, Pflueger J, Nefzger C, Polo JM, Ford E, Lister R. Genome Res. 2018 Jun 15. pii: gr.233049.117. doi: 10.1101/gr.233049.117. 10.1101/gr.233049.117 PubMed 29907613

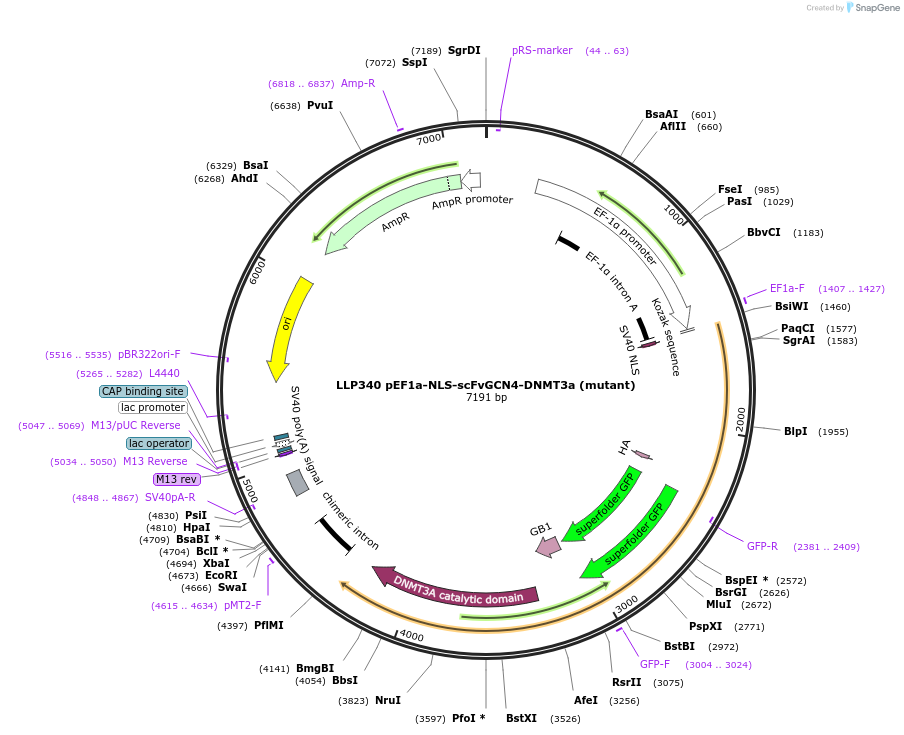

Map uploaded by the depositor.
