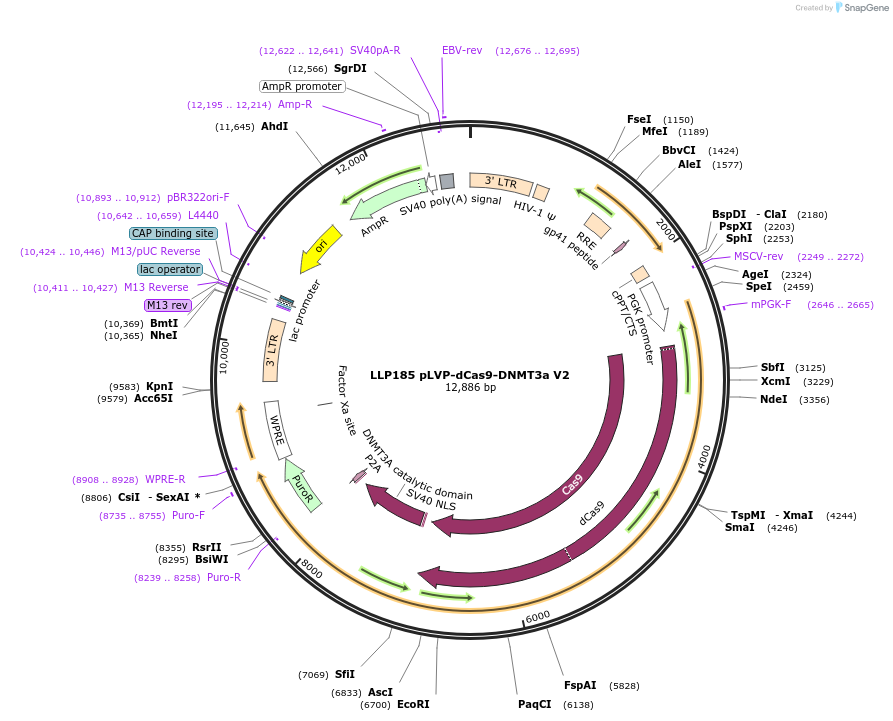

PurposedCas9 and DNMT WT on C terminus, 4 NLS, driven by pGK promoter, with P2A site and PURO gene, within a lentiviral transfer backbone
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 100936 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepLVP
- Backbone size w/o insert (bp) 6235
- Total vector size (bp) 12934
-
Modifications to backboneAddgene Plasmid #41816 hCas9_D10A with PCR mutagenesis to introduce the H840A mutation to generate the catalytically dead Cas9 (dCas9) and ZF-598-DNMT3A plasmid (Gift from Pilar Blancafort) was used to PCR amplify DNMT3a catalytic domain
-
Vector typeMammalian Expression, Lentiviral, CRISPR
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namedCas9, DNMT3a catalytic domain
-
SpeciesH. sapiens (human); S.pyogenes
-
Insert Size (bp)5157
-
MutationD10A, H840A for dCas9
-
Entrez GeneDNMT3A (a.k.a. DNMT3A2, HESJAS, M.HsaIIIA, TBRS)
-
Tags
/ Fusion Proteins
- 3xHA (N terminal on insert)
- 3xTy1 (C terminal on insert)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
LLP185 pLVP-dCas9-DNMT3a V2 was a gift from Ryan Lister (Addgene plasmid # 100936 ; http://n2t.net/addgene:100936 ; RRID:Addgene_100936) -
For your References section:
A modular dCas9-SunTag DNMT3A epigenome editing system overcomes pervasive off-target activity of direct fusion dCas9-DNMT3A constructs. Pflueger C, Tan D, Swain T, Nguyen TV, Pflueger J, Nefzger C, Polo JM, Ford E, Lister R. Genome Res. 2018 Jun 15. pii: gr.233049.117. doi: 10.1101/gr.233049.117. 10.1101/gr.233049.117 PubMed 29907613
