PurposeDual expression of Lbu-dCas13a with a C-terminal avi-tag and BirA to biotinylate Lbu-dCas13a
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 100817 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

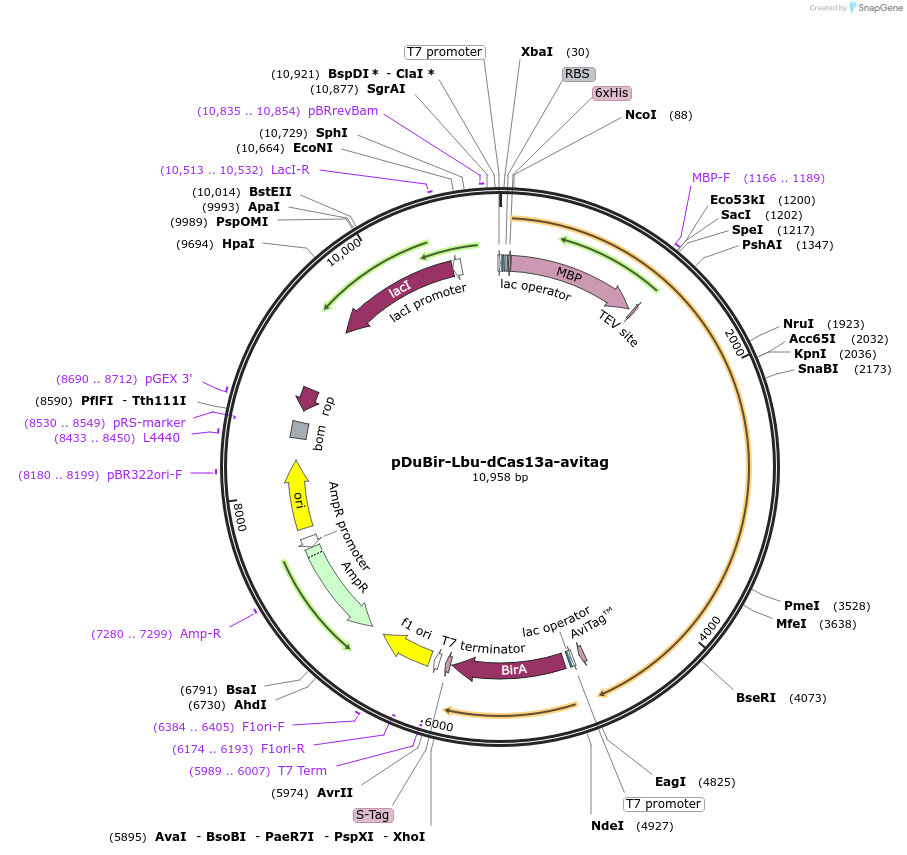

Backbone
-
Vector backbonepDuBir
- Backbone size w/o insert (bp) 7484
- Total vector size (bp) 10961
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameLbu_Cas13a_R472A_H477A_R1048A_H1053A
-
Alt nameC2c2
-
Alt nameHEPN-nuclease deactivated LbuCas13a
-
Alt nameWP_015770004 hypothetical protein [Leptotrichia buccalis]
-
SpeciesLeptotrichia buccalis
-
Insert Size (bp)3477
-
MutationR472A, H477A, R1048A, H1053A
-
GenBank IDWP_015770004.1 ACV39665.1
- Promoter T7
-
Tags
/ Fusion Proteins
- His6-MBP (N terminal on insert)
- AviTag (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site AarI (destroyed during cloning)
- 3′ cloning site AarI (destroyed during cloning)
- 5′ sequencing primer MBP_forward
- 3′ sequencing primer T7_terminator (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pDuBir-Lbu-dCas13a-avitag was a gift from Mitchell O'Connell (Addgene plasmid # 100817 ; http://n2t.net/addgene:100817 ; RRID:Addgene_100817) -
For your References section:
RNA Binding and HEPN-Nuclease Activation Are Decoupled in CRISPR-Cas13a. Tambe A, East-Seletsky A, Knott GJ, Doudna JA, O'Connell MR. Cell Rep. 2018 Jul 24;24(4):1025-1036. doi: 10.1016/j.celrep.2018.06.105. 10.1016/j.celrep.2018.06.105 PubMed 30044970
