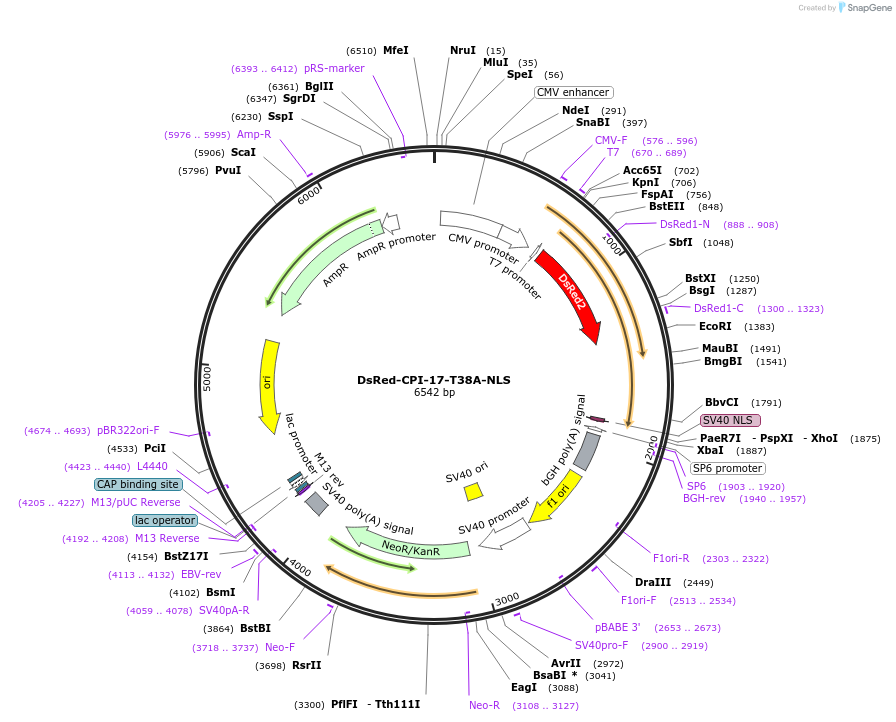

DsRed-CPI-17-T38A-NLS
(Plasmid #100792)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 100792 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pcDNA3.1(+)
  • Backbone size w/o insert (bp) 5400
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    protein phosphatase 1 regulatory inhibitor subunit 14A
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    486
  • Mutation
    T38A
  • Entrez Gene
    PPP1R14A (a.k.a. CPI-17, CPI17, PPP1INL)
  • Promoter CMV
  • Tag / Fusion Protein
    • DsRed (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer T7
  • 3′ sequencing primer Sp6
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    DsRed-CPI-17-T38A-NLS was a gift from Joseph Gordon (Addgene plasmid # 100792 ; http://n2t.net/addgene:100792 ; RRID:Addgene_100792)
