YCe3777 HC_Kan_Chimeric-5'LTR_p1
(Plasmid #100704)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 100704 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pSMART HC_Kan
  • Vector type
    Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Lentiviral chimeric 5' LTR

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)
  • 3′ cloning site Unknown (unknown if destroyed)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

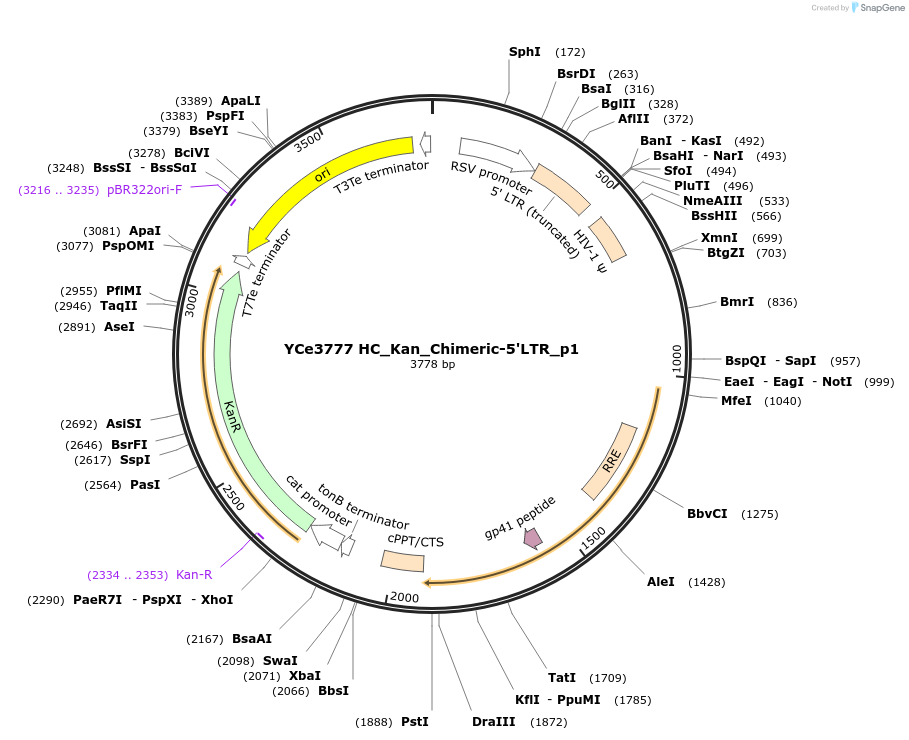

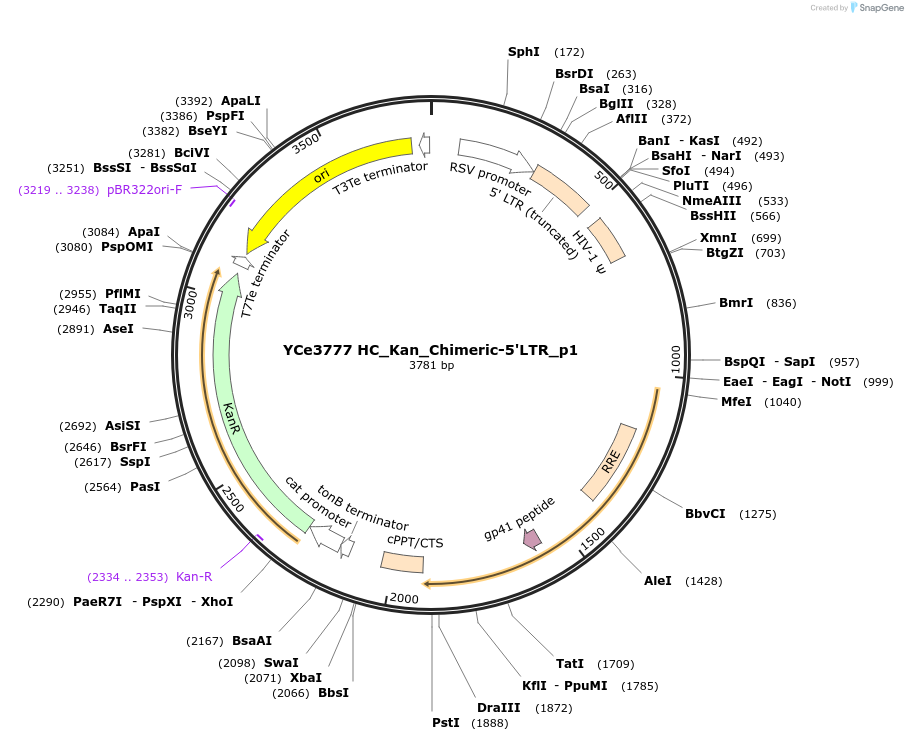

Chimeric 5'LTR for lentiviral vectors :It contains an RSV promoter, a truncated 5'LTR and other lentiviral elements such as Phi element, cPPT/CTS and RRE. Note: it contains an internal BsaI site that has not been removed to not alter the original sequence

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    YCe3777 HC_Kan_Chimeric-5'LTR_p1 was a gift from Yizhi Cai (Addgene plasmid # 100704 ; http://n2t.net/addgene:100704 ; RRID:Addgene_100704)
  • For your References section:

    EMMA: An Extensible Mammalian Modular Assembly Toolkit for the Rapid Design and Production of Diverse Expression Vectors. Martella A, Matjusaitis M, Auxillos J, Pollard SM, Cai Y. ACS Synth Biol. 2017 Apr 24. doi: 10.1021/acssynbio.7b00016. 10.1021/acssynbio.7b00016 PubMed 28418644
