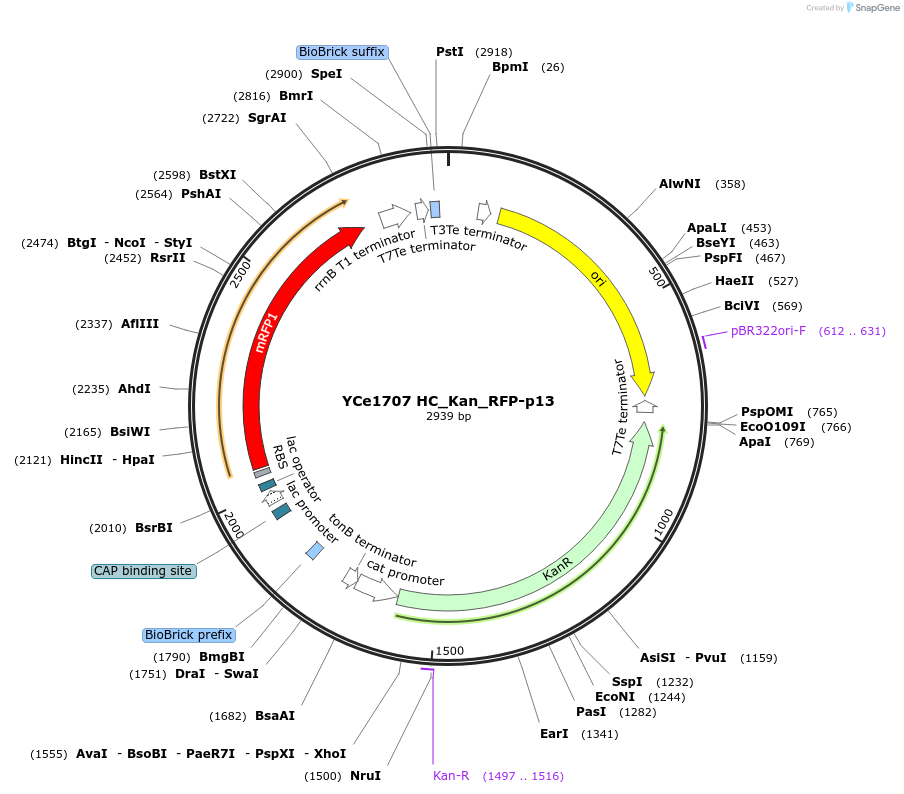

YCe1707 HC_Kan_RFP-p13
(Plasmid #100623)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 100623 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pSMART HC_Kan
  • Vector type
    Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    None

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

It is used to standardize new parts for EMMA toolkit. New DNA fragments (parts) are cloned into this plasmid replacing the RFP gene through a BsaI Golden Gate reaction. The resulting plasmid will have the part flanked by BsmBI sites and the fusion sites corresponding to position 13 of EMMA platform.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    YCe1707 HC_Kan_RFP-p13 was a gift from Yizhi Cai (Addgene plasmid # 100623 ; http://n2t.net/addgene:100623 ; RRID:Addgene_100623)

  • For your References section:

    EMMA: An Extensible Mammalian Modular Assembly Toolkit for the Rapid Design and Production of Diverse Expression Vectors. Martella A, Matjusaitis M, Auxillos J, Pollard SM, Cai Y. ACS Synth Biol. 2017 Apr 24. doi: 10.1021/acssynbio.7b00016. 10.1021/acssynbio.7b00016 PubMed 28418644
