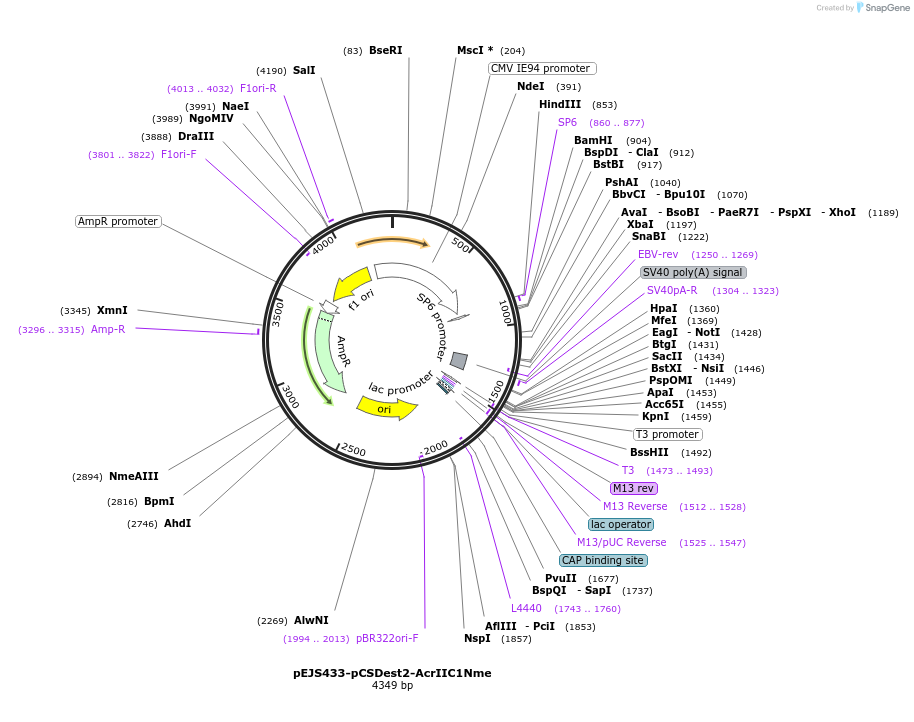

pEJS433-pCSDest2-AcrIIC1Nme
(Plasmid #85679)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 85679 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pCSDest2
  • Backbone size w/o insert (bp) 4097
  • Total vector size (bp) 4352
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Type II-C anti-CRISPR AcrIIC1Nme
  • Species
    Neisseria meningitidis
  • Insert Size (bp)
    255
  • GenBank ID
    WP_049360089.1
  • Promoter CMV

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CGC AAA TGG GCG GTA GGC GTG
  • 3′ sequencing primer CAG GAA ACA GCT ATG AC
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEJS433-pCSDest2-AcrIIC1Nme was a gift from Erik Sontheimer (Addgene plasmid # 85679 ; http://n2t.net/addgene:85679 ; RRID:Addgene_85679)
  • For your References section:

    Naturally Occurring Off-Switches for CRISPR-Cas9. Pawluk A, Amrani N, Zhang Y, Garcia B, Hidalgo-Reyes Y, Lee J, Edraki A, Shah M, Sontheimer EJ, Maxwell KL, Davidson AR. Cell. 2016 Dec 15;167(7):1829-1838.e9. doi: 10.1016/j.cell.2016.11.017. Epub 2016 Dec 8. 10.1016/j.cell.2016.11.017 PubMed 27984730
