pCfB3039(XII-2 MarkerFree)
(Plasmid
#73279)
-
Purpose(Empty Backbone) EasyClone-MarkerFree backbone vector for the addition of 1 or 2 genes and promoters for integration into site XII-2 (Chr XII: 808805..809939)
-
Depositing Lab
-

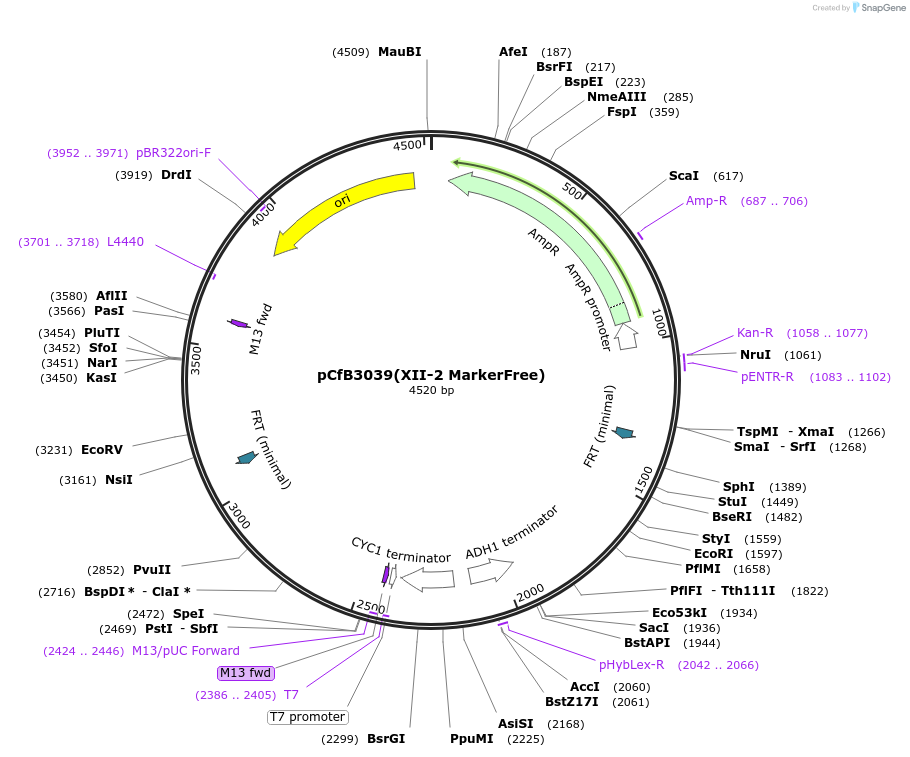

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 73279 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonep120(XII-2)
-
Backbone manufacturerDTU
- Backbone size (bp) 4521
-
Modifications to backboneThe pCfB3039 vector was created by amplifying the p120(XII-2) with primers that were designed to attach to either side of the selection markers, creating a fragment that no longer contained the marker. These fragments were then ligated to form the marker-less vectors. The PAM sites in the integration regions were removed by site-directed mutagenesis.
-
Vector typeYeast Expression, CRISPR, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCfB3039(XII-2 MarkerFree) was a gift from Irina Borodina (Addgene plasmid # 73279 ; http://n2t.net/addgene:73279 ; RRID:Addgene_73279) -
For your References section:
EasyClone-MarkerFree: A vector toolkit for marker-less integration of genes into Saccharomyces cerevisiae via CRISPR-Cas9. Jessop-Fabre MM, Jakociunas T, Stovicek V, Dai Z, Jensen MK, Keasling JD, Borodina I. Biotechnol J. 2016 Aug;11(8):1110-7. doi: 10.1002/biot.201600147. Epub 2016 Jun 23. 10.1002/biot.201600147 PubMed 27166612
