Addgene

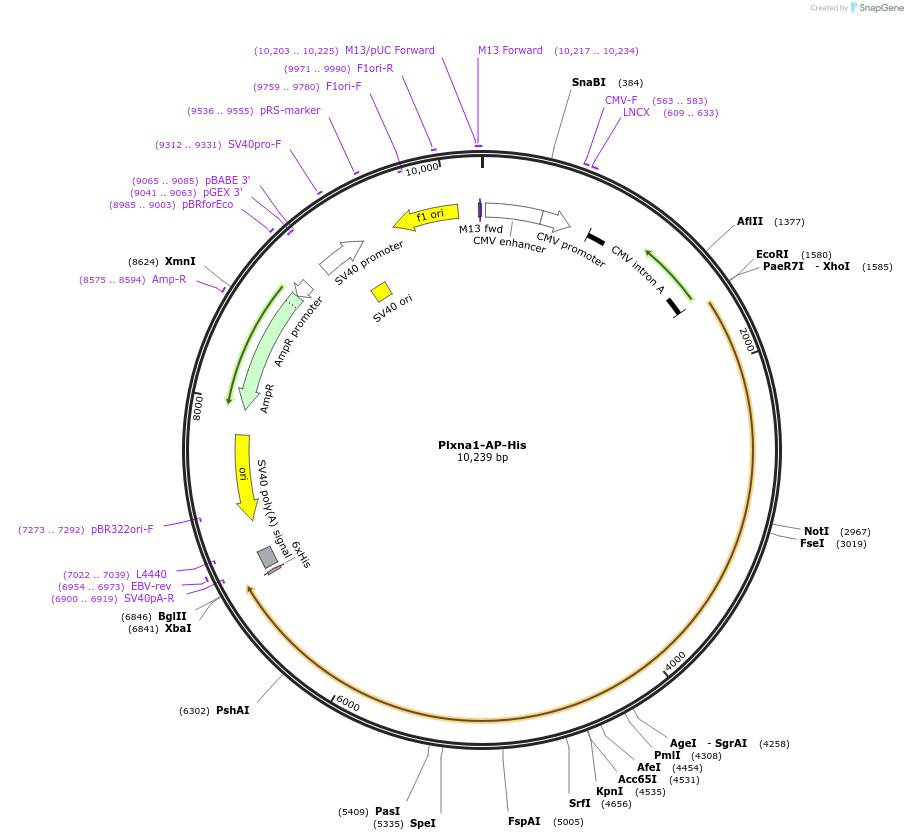

Plxna1-AP-His
(Plasmid #71996)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 71996 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pCMVi-SV40ori
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Plxna1
  • Alt name
    Plexin A1; Plxn1; PlexA1; NOV
  • Alt name
    NCBI gene ID 18844; Reference sequence NM_008881.2
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    3723
  • Entrez Gene
    Plxna1 (a.k.a. 2600013D04Rik, NOV, PlexA1, Plxn1, mKIAA4053)
  • Promoter CMV
  • Tag / Fusion Protein
    • AP-His (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site PmeI (destroyed during cloning)
  • 3′ cloning site SpeI (not destroyed)
  • 5′ sequencing primer GTCAGAGGTAACTCCCGTTGC
  • 3′ sequencing primer GAGGTTCTTGGCGGCTGTC
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Plxna1-AP-His was a gift from Woj Wojtowicz (Addgene plasmid # 71996 ; http://n2t.net/addgene:71996 ; RRID:Addgene_71996)
  • For your References section:

    An extracellular biochemical screen reveals that FLRTs and Unc5s mediate neuronal subtype recognition in the retina. Visser JJ, Cheng Y, Perry SC, Chastain AB, Parsa B, Masri SS, Ray TA, Kay JN, Wojtowicz WM. Elife. 2015 Dec 3;4. pii: e08149. doi: 10.7554/eLife.08149. 10.7554/eLife.08149 PubMed 26633812
