pCNL-C1
(Plasmid
#64307)
-
PurposeTo create cDNA of proteins fused to the C terminus of CNL.
-
Depositing Lab
-

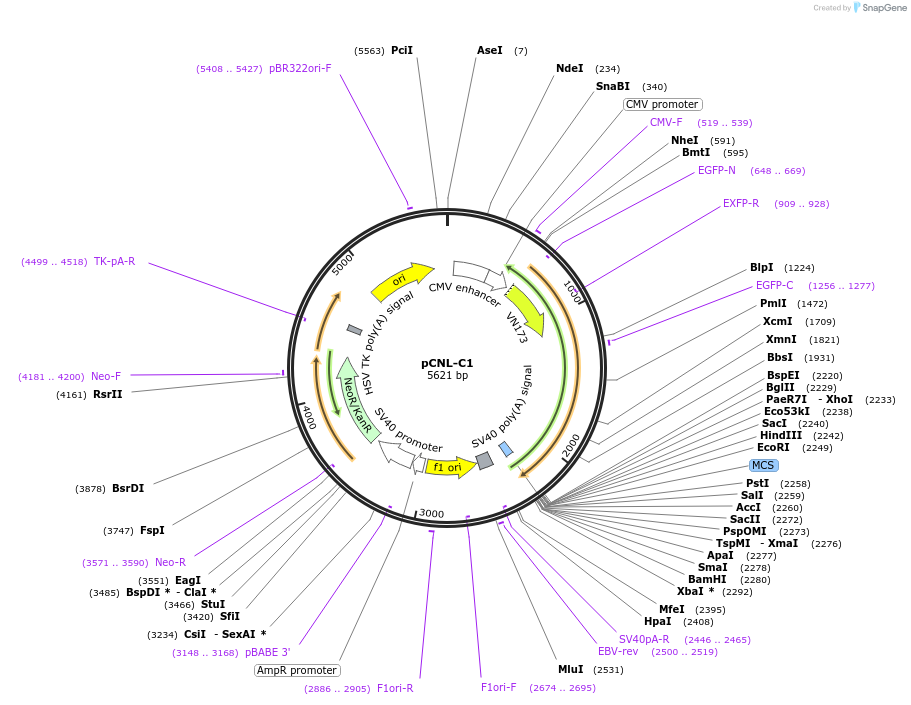

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 64307 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepEGFP-C1
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 4000
- Total vector size (bp) 5600
-
Vector typeMammalian Expression, Luciferase
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCyan Nano-lantern
-
Alt nameCNL
-
SpeciesSynthetic
-
GenBank IDAB982072
- Promoter CMV
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NheI (not destroyed)
- 3′ cloning site BspEI (not destroyed)
- 5′ sequencing primer CMV-fwd
- 3′ sequencing primer EBV-rev (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made bypmTurquoise2-N1 (gifted from Dr Dorus Gadella Lab)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCNL-C1 was a gift from Yasushi Okada (Addgene plasmid # 64307) -
For your References section:
Expanded palette of Nano-lanterns for real-time multicolor luminescence imaging. Takai A, Nakano M, Saito K, Haruno R, Watanabe TM, Ohyanagi T, Jin T, Okada Y, Nagai T. Proc Natl Acad Sci U S A. 2015 Apr 7;112(14):4352-6. doi: 10.1073/pnas.1418468112. Epub 2015 Mar 23. 10.1073/pnas.1418468112 PubMed 25831507
