Addgene

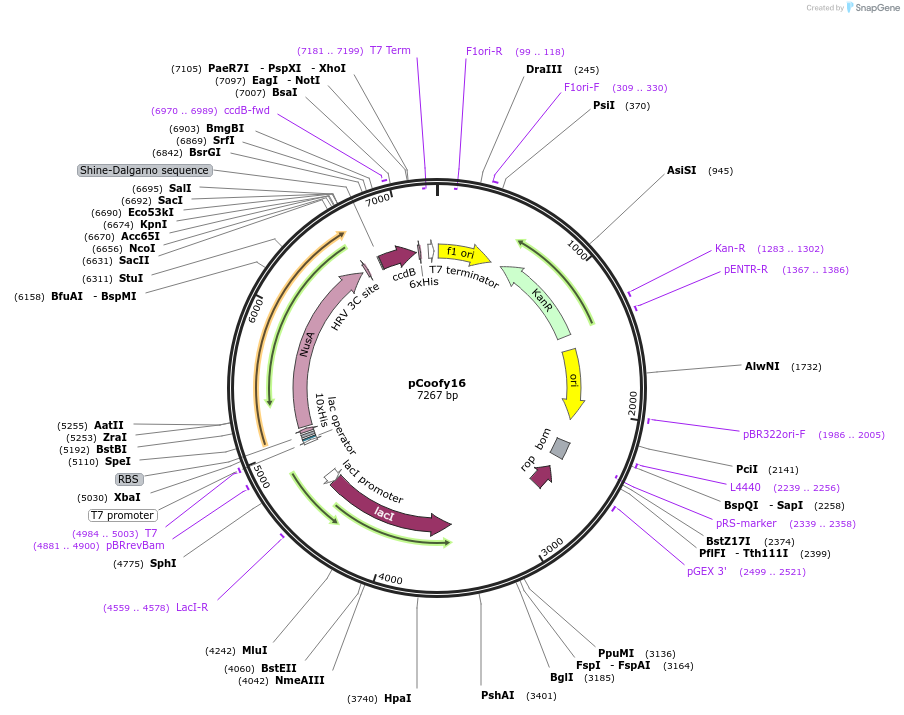

pCoofy16
(Plasmid #43988)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 43988 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pET, pCoofy15
  • Backbone manufacturer
    Novagen
  • Backbone size (bp) 7267
  • Modifications to backbone
    Insertion of Llp-ccdB
  • Vector type
    Bacterial Expression
  • Promoter T7
  • Tag / Fusion Protein
    • His10-NusA (N terminal on backbone)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DB3.1
  • Growth instructions
    ccdB Survival cells are NOT suitable for the unmodified plasmid containing the ccdB gene. The plasmid is provided in the recommended DB3.1 strain.
  • Copy number
    Low Copy

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer 5' CGTTTGTACGCTGGAAGATCTCG 3'
  • 3′ sequencing primer 5' GCTAGTTATTGCTCAGCGG 3'
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Test each preparation of the plasmid by transforming it into non-resistant cells (ex. DH5a) to ensure negative selection by ccdB kills all the transformed cells as expected.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCoofy16 was a gift from Sabine Suppmann (Addgene plasmid # 43988 ; http://n2t.net/addgene:43988 ; RRID:Addgene_43988)
  • For your References section:

    A new method to customize protein expression vectors for fast, efficient and background free parallel cloning. Scholz J, Besir H, Strasser C, Suppmann S. BMC Biotechnol. 2013 Feb 14;13(1):12. 10.1186/1472-6750-13-12 PubMed 23410102
