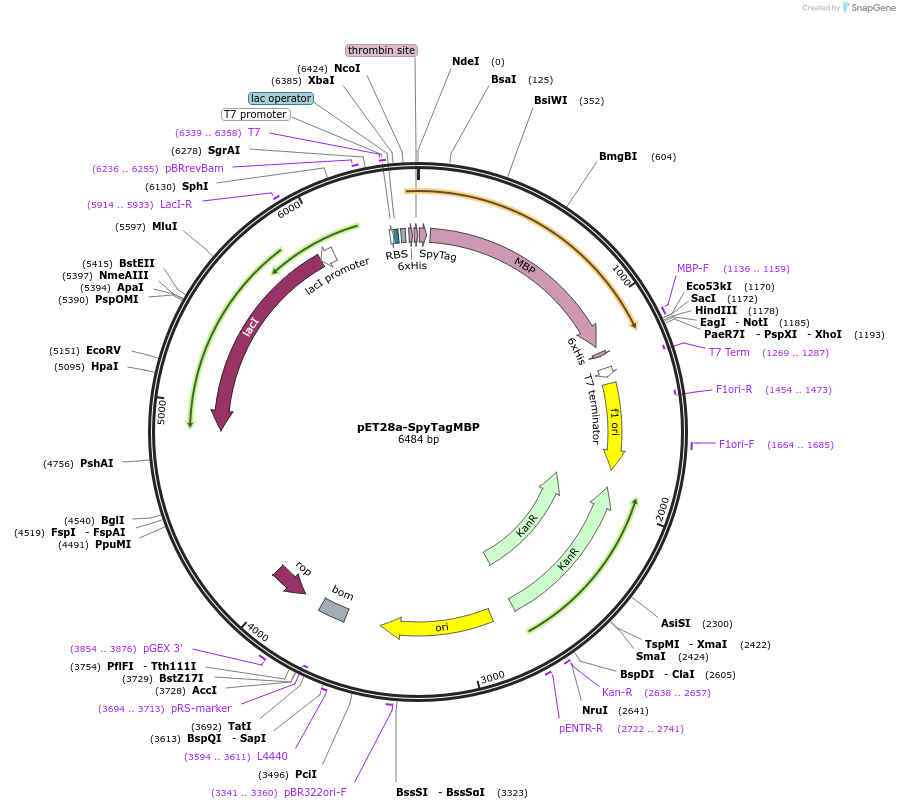

pET28a-SpyTagMBP
(Plasmid #35050)

• Depositing Lab: Mark Howarth
• Publication: Zakeri et al Proc Natl Acad Sci U S A. 2012 Mar 20;109(12):E690-7. Epub 2012 Feb 24.

Backbone

• Vector backbone: pET28a
• Backbone manufacturer: Novagen
• Backbone size w/o insert (bp): 5369
• Vector type: Bacterial Expression

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): XL1 Blue
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: SpyTagMBP
• Insert Size (bp): 1173
• Mutation: Simple peptide tag added to the N-terminus of MBP via a GSGESG linker
• Promoter: T7 promoter
• Tag / Fusion Protein:
  • His6 (N terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: NdeI (not destroyed)
• 3′ cloning site: HindIII (not destroyed)
• 5′ sequencing primer: T7F
• 3′ sequencing primer: T7R

Resource Information

• Articles Citing this Plasmid:
  • 5 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
